EI 175 EI 133.2 EI Transformer Lamination

Name: EI 175 EI 1332 EI Transformer Lamination
Brand: CENTERSKY or Designed Accoeding to customers' demand
Price: 1.0 USD

China EI 175 EI 133.2 EI Transformer Lamination wholesale

Brand Name : CENTERSKY or Designed Accoeding to customers' demand

Model Number : ET300×300, ET350×350, ET400×400, ET500×500

Certification : ISO, ROHS

Place of Origin : Jiangyin, Jiangsu, China

MOQ : 3000 KGS

Price : 1.0usd/kg

Payment Terms : L/C, T/T, D/P

Supply Ability : 15000 MT Per Year

Delivery Time : 8-20 DAYS

Packaging Details : Standard Packing, 1000kg One Pallet

Material : CRNGO Silicon Steel Material

Thickness : 0.5mm thickness

Product Name : ET300×300 Silicon Steel EI Lamination Three Phase Ei Transformer Core

Key Word : Ei Transformer Core

Packaging : Cartons/Pallets

Sizes : Three Phase EI 85.8, EI 100, EI 120, EI 150, EI 200, EI 300, EI 3600

Surface Treatment : T4 Coating

Capacity : 50mt per day

Company History : More than 20 years' manufacturing experience

Equipments : High Speed Punching Machines, Manual Punching Machines

Grade Material : M400-50A, M330-50A, M250-50A

Holes : 6 holes

Maximum sizes : ET 600×600

Contact Now

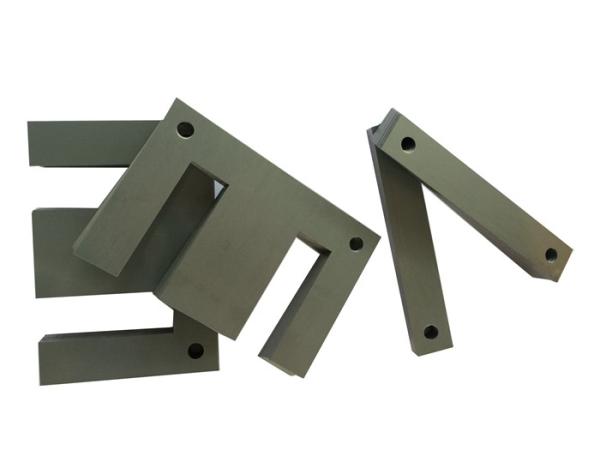

American size EI-175 (common EI-133.2) Electrical Lamination Transformer EI Core

Introduction:
Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Type	a	b	c	d	e	holes	aperture
EI- 28	28	4	6	8	17
EI-35	35	5	7.5	10	19.5
EI-41	41	6	8	13	21
EI-42	42	7	7	7	14
EI-48	48	8	8	16	24
EI-50	50	8	9	16	25.5
EI-57	57	9.5	9.5	19	28.5	4	4
EI-60	60	10	10	20	30	4	5
EI-66	66	11	11	22	33	4	4
EI-75	75	12.5	12.5	25	37.5	4	5.5
EI-76.2	76.2	12.7	12.7	25.4	38.1	4	5
EI-78	78	13	13	26	39	4	5
EI-84	84	14	14	28	41	4	6
EI-85.8	85.8	14.3	14.3	28.6	42.9	4	5
EI-96	96	16	16	32	48	4	6
EI-105	105	17.5	17.5	35	52.5	4	6
EI-108	108	18	18	36	54	4	5.5
EI-114	114	19	19	38	57	4	6
EI-120	120	20	20	40	60	4	7
EI-126	126	21	21	42	63	4	7
EI-133.2	133.2	22.2	22.2	44.4	66.6	4	7
EI-150	150	25	25	50	75	4	8
EI-152.4	152.4	25.4	25.4	50.8	76.2	4	8
EI-162	162	27	27	54	81	4	10
EI-168	168	28	28	50	84	4	10
EI-171	171	28.5	28.5	57	85.5	4	10
EI-180	180	30	30	60	90	4	10
EI-190.5	190.5	31.75	31.75	63.5	95.25	4	10
EI-192	192	32	32	64	96	4	10
EI-210	210	35	35	70	105	4	10
EI-228	228	38	38	76	114	4	10
EI-240	240	40	40	80	120	4	10
EI-254	254	48	55	48	164	4	12
EI-270	270	45	45	90	135	4	12
EI-228	228	38	38	76	114	4	10
EI-300	300	50	50	100	150	4	12
EI-360	360	60	60	120	180	4	12

Catalogue:

EI 175 EI 133.2 EI Transformer Lamination

Type	a	b	c	d	e	holes	aperture(Φ)
UI-20	60	20	20		60	4	6
UI-22	66	22	22		66	4	6,8
UI-25	75	25	25		75	4	6,8
UI-27	81	27	27		81	4	6,8
UI-28	84	28	28		84	4	8
UI-30	90	30	30		90	4	8
UI-32	96	32	32		96	4	8
UI-35	105	35	35		105	4	8
UI-38	114	38	38		114	4	8
UI-40	120	40	40		120	4	10
UI-44	132	44	44		132	4	8,10
UI-45	135	45	45		135	4	10
UI-50	150	50	50		150	4	8,10
UI-60	180	60	60		180	4	10,12
UI-70	210	70	70		210	4	13
UI-80	240	80	80		240	4	14
UI-90	270	90	90		270	4	14
UI-100	300	100	100		300	4	16

EI 175 EI 133.2 EI Transformer Lamination

Type	a	b	c	d	e	Holes	Aperture(Φ)
3PEI-17.5	87.5	17.5	17.5	17.5	52.5	4	6
3PEI-20	100	20	20	20	50	6	6
3PEI-20*	100	20	20	20	60	4,6	6
3PEI-22	110	22	22	22	66	4	8
3PEI-22.2	122	22	28	22.2	61	4	6
3PEI-25	125	25	25	25	75	4	8
3PEI-27	135	27	27	27	81	4	8
3PEI-28	140	28	28	28	84	4	8
3PEI-29	145	29	29	29	72.5	4	8
3PEI-30	150	30	30	30	90	6	7
3PEI-30.5	152	30.5	30.5	30.5	76.25	6	6
3PEI-32	160	32	32	32	80	4	8
3PEI-32*	160	32	32	32	96	4	8
3PEI-35	175	35	35	35	105	4	8
3PEI-36	180	36	36	36	90	6	8
3PEI-38	190	38	38	38	95	4,6	8,10.5
3PEI-38*	190	38	38	38	114	6	8
3PEI-40	200	40	40	40	100	4	10.5
3PEI-40*	200	40	40	40	120	4,6	10
3PEI-44	220	44	44	44	132	6	8,10.5,12.5
3PEI-45	225	45	45	45	135	4	10
3PEI-50	250	50	50	50	150	4,6	8,10.5
3PEI-56	280	56	56	56	168	4	12
3PEI-60	300	60	60	60	180	6	12
3PEI-61*	288	61.3	52	61.3	144	4,6	12
3PEI-61	305	61	61	61	152.5	4,6	14
3PEI-70	350	70	70	70	210	6	13
3PEI-80	400	80	80	80	240	6	14
3PEI-90	450	90	90	90	270	6	14
3PEI-100	500	100	100	100	300	6	16
3PEI-120	600	120	120	120	320	6	16

Company information:

Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

Our capacity is 1500mt per month. We have 15 years' export experience.

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
